Underwater Installations

SUBMERGED DISAPPEARING AUTOMATIC COVERS

If you are designing your new pool remember to include the shutter compartment (a tank adjacent to the pool where you can install the cover roller).

We provide the ideal disappearing solution that perfectly integrates with the structure of your pool.

CHOOSE YOUR FAVOURITE SOLUTION!

TP-1


A submerged cover is placed in a separate tank, detached from the pool by a dividing wall, where the motor is placed in an external dry section. Maintenance costs are drastically reduced: you can access the gear motor without having to dismantle the whole rolling shutter. When the cover is stowed away it will not be in the way for normal pool access.

Read more

TP-2


A great solution for both pools currently in construction (with a motor stored in a separate dry compartment next to the rolling mechanism), as for existing ones (a tubular gear motor will be installed). Upon request the roller can be protected with a dividing panel or a treadable submerged section for greater safety and elegance.

Read more

TP-3


The cover and the entire rolling mechanism are submerged in a compartment under the pool and are protected by a treadable underwater grill. The gear motor is placed in an external adjacent compartment that remains dry to facilitate maintenance operations.
A discrete and elegant solution.


Read more

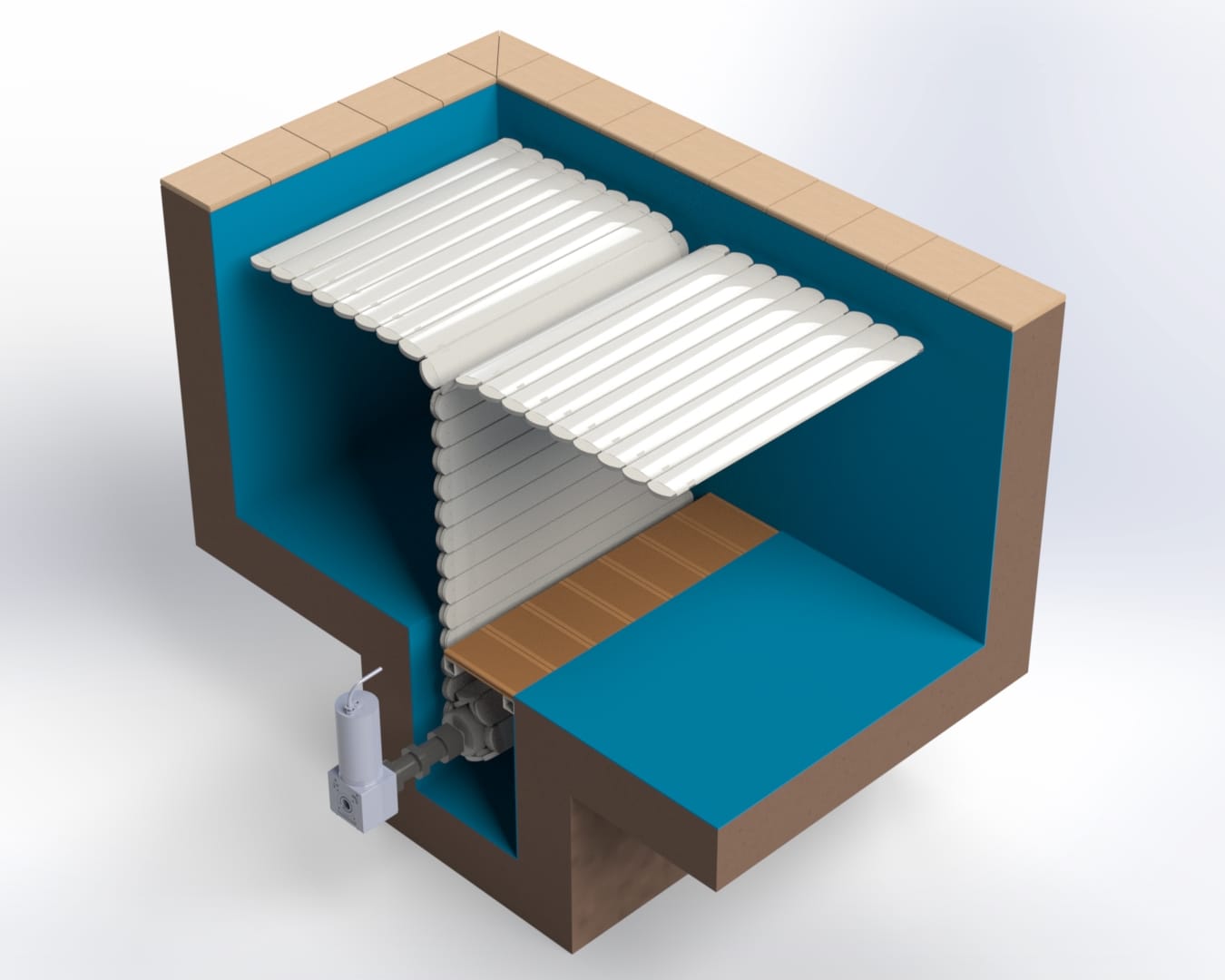

Mod. TP-4


The cover is installed in a compartment on the bottom of the pool, protected by a treatable shutter that can open electronically. The gear motor is installed in an external adjacent compartment. The ideal solution for irregularly-shaped pools.

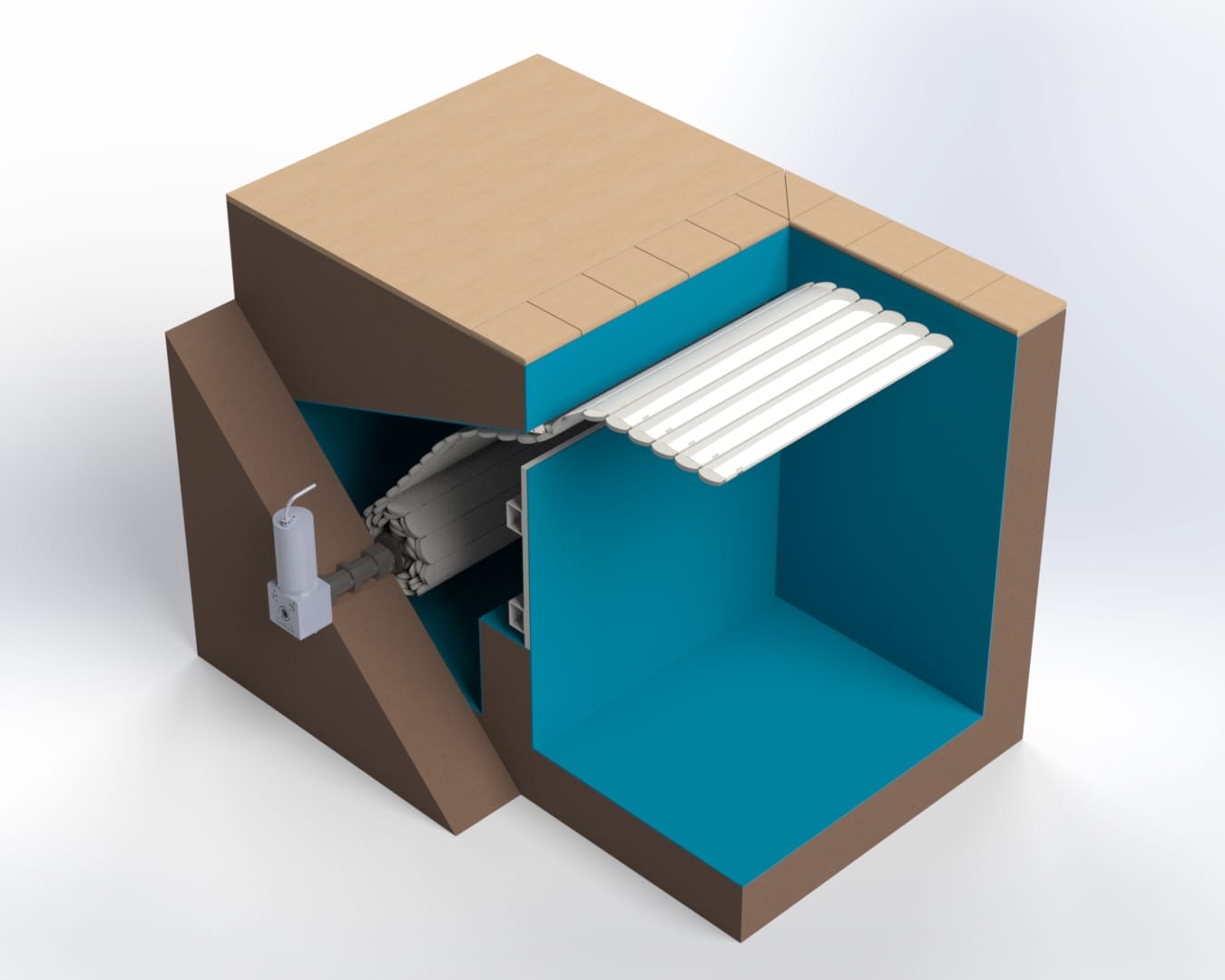

TP-5


A particularly interesting solution for those who want to maintain the overflow channel on all sides of the pool. The rolling mechanism is installed in a compartment below at the front of the pool so that, when it is rewinded, the cover will not reduce the amount of free space available for swimmers. The gear motor will be placed in a separate compartment. An ideal solution for pools that are either in construction or that already have a fitted compartment in the front end of the pool.

Read more

TP-BEACH


An ideal solution for a perfect, elegant integration of your cover with your pool. The rolling mechanism is installed in a separate tank to the pool, detached by a dividing wall. The most will be made out of the pool surface by using the space occupied by the covering mechanism as a submerged platform. Available with a tubular gear motor or placed on a separate dry compartment.

 Read more

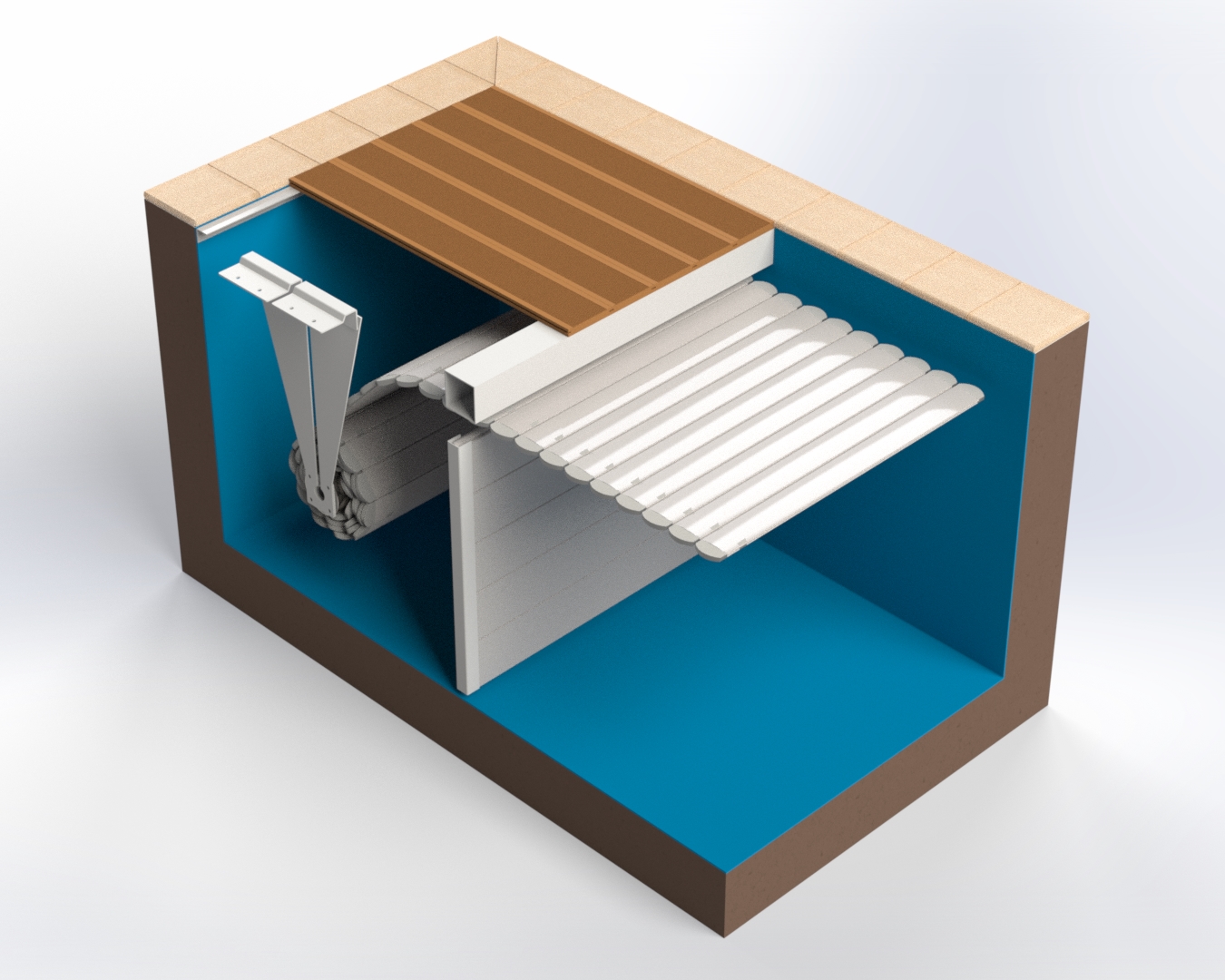

TP-IN


You already have a pool and want to install a disappearing shutter cover? With this solution you will be able to make the most of a disappearing cover without having to worry about expensive construction or masonry work. A tubular motor and, upon request, a dividing wall. The rolling system will be covered with planks in exotic wood, PVC or WPC.
